Description
1. The main chip is upgraded from 8-bit to 32-bit, and the printer runs more smoothly.

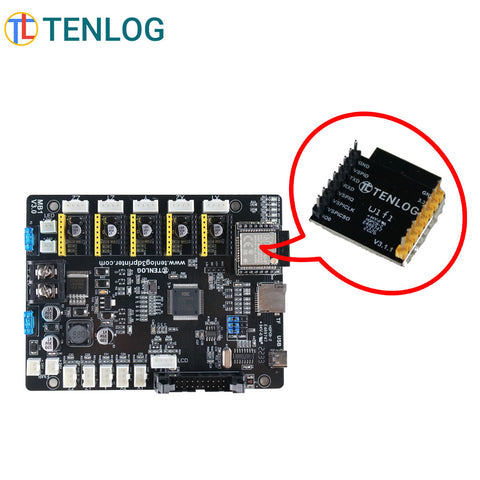

2. The 32-bit mainboard supports WiFi, and the printer can be controlled through the network.
3. The memory card adopts a TF card, which is small and convenient.
4. The main board adopts the mainstream type-c interface, which can be connected in both directions.
5. The motherboard supports Marlin2.0 firmware.
6. The fans of the two nozzles can be controlled independently.
7. The belt tension in the X and Y directions can be easily adjusted.
8. The fan on the side of the extruder uses two blowers to dissipate heat from the printed model.
9. The front fan of the nozzle is upgraded to a 5010 silent fan to increase the heat dissipation capacity.
10. The printing platform adopts PEI magnetic plate.
11. The Z-axis baby step.

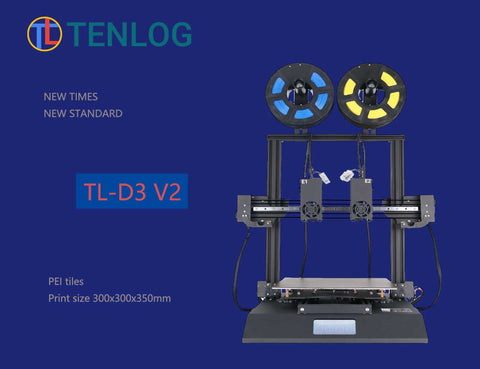

Name: | TL-D3 V2 Dual Extruder 3D Printer |
Manufacturer: | TENLOG 3D Printer |
Model Number: | TL-D3 V2 |
Color: | Black |
Material: | Aluminum |
Courier size: | 64 × 59 × 23cm |
Expand Size: | 58 × 52 × 78cm |
Sheet Heatbed Area: | 310*310mm |
Printer Volume: | 300*300*350mm |
Copy Mode Size: | 150*300*350mm |
Mirror Mode Size: | 120*300*350mm |
IDEX Printer Weight: | 16Kg |
Package Weight: | 20Kg |
Power Source: | AC 100-240V 50-60Hz |
Max Nozzle Temperature: | ≤300℃ |
Max Hot bed Temperature: | ≤100℃ |
Filament: | 1.75mm TPU, PVA, PLA, ABS, HIPS, WOOD, PETG, FLEXIBLE, Nylon |

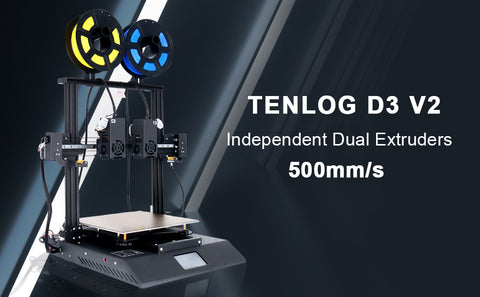

TENLOG TL-D3 IDEX 3D Printer Features
◉ 🐳【Independent Dual Extruder Design】 Our TL-D3 V2 Dual IDEX 3D Printer has double nozzles that are independent of each other, allowing you to print in duplication and mirror mode. You can also choose two different colors or materials to create at the same time or print with soluble support (such as PVA 3D Printer Filament) to precisely implement models that are difficult to lay down.
◉ 🐳【Easy to disassemble the model】: Unlike the silicon carbide glass printing platform, the printing platform of the D3 V2 is made of spring steel that is resistant to drops and bends. After printing, the model can be removed by bending. The magnetic design is easy to install and the model can be easily removed.
◉ 🐳【Self-developed Silent Motherboard】 The TL-D3 V2 IDEX 3D Printer has built-in self-developed silent motherboard TENLOG TMC2209 Driver, which has stronger anti-interference, faster and more stable motion performance, silent printing, and low decibel operation.
◉ 🐳【Easy to Assemble】 The printer comes with several pre-assembled parts. You can assemble the 3D printer in 3 steps, with the user manual, in about 15 minutes.
◉ 🐳【Metal scraper】 when using the dual-material mode, the IDEX 3D Printer Metal Scraper is afraid that it will wipe the remaining filament on the nozzle, so there is no need to use an Enable Ooze Shield and an Enable Prime Tower to print the dual color mode.
◉ 🐳【Multi Printing Material Available】 Our TL-D3 IDEX 3D Printer works on sorts of materials, such as 1.75mm PLA, TPU, PVA, PP, ABS, WOOD and so 3D Printer Filament.
◉ 🐳【Optical Limit Switch】Change the mechanical limit switch to an optical switch, which improves printing accuracy and model precision.
TENLOG TL-D3 V2 IDEX 3D Printer Details
1. 400W power supply:
TENLOG 400W Brand Power Supply, quality and service are more trustworthy to ensure the stability and safety of operation.
2. Linear guide:
Equipped with industrial-grade linear guides providing smoother performance, less friction, and higher accuracy.
3. Optical switch/photoelectric sensor:
Change the mechanical limit switch to an Optical Switch, and its function will be more accurate and precise.
4. Modular Design:
The simple base and gantry modularization allow DIY manufacturers, even complete novices, to assemble in minutes.
5. Double Z-axis design:
Two Z-axis screws and stepper motors drive the vertical axis of TL-D3 V2 IDEX 3D Printers, greatly improving the accuracy and precision up to 0.001 mm, making it a true professional printer.
6. Resume Printing:
Upgraded to the continuous printing function after a power failure, the printer can continue to work even if the power fails unexpectedly.
7. Filament Rounout Detection:
No need to worry about the shortage or breakage of consumables, the smart Filament Rounout Detection will detect this and pause your printing to resume printing after new consumables enter.
8. Single printing mode:
Single mode volume up to 310*310*310mm
TENLOG TL-D3 IDEX 3D Printer Packing List:
Printer Host: 1 Set
Z/X Gantry Assembly: 1 Set
IDEX 3D Printer Filament: 2 rolls
Dual Extruder & Nozzle Kits: 1 Set
PEI magnet: 1 piece
Installation & maintenance tool: 2 Boxes
